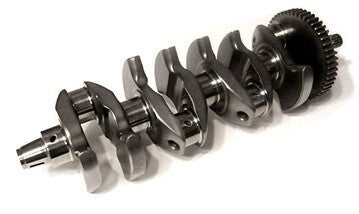

Marine Billet Stroker Crankshaft

Built for racers who demand absolute reliability, Marine Crankshafts are fully forged and precision-finished from premium E4340 aircraft-grade billet steel. Trusted by DME Racing’s championship-winning team bikes, these crankshafts deliver the strength, balance, and performance you need to push harder on race day.

FEATURES

• Unmatched Strength & Durability – Triple heat-treated for extreme toughness under the most punishing race conditions.
• Optimized Oiling System – High-speed straight-line oiling ensures consistent lubrication at maximum RPM.
• Dynamic “No Holes” Balance – Engineered for smoother operation and reduced vibration at high horsepower levels.
• Lightened for Performance – Through-pin lightning holes reduce rotating mass without sacrificing strength.
• Superior Wear Resistance – Ion-plasma nitride finish provides outstanding journal surface hardness and extended service life.
• Race-Ready Weight – At just 21 lbs. (vs. 24.6 lbs. stock), these cranks shave off critical pounds for quicker acceleration.

FITMENTS – HAYABUSA G1 (1999-2007)

• 5MM (+2MM)
• 66MM (+3MM)
• 68MM (+5MM)
• 72MM (+9MM)
• 74MM (+11MM)
• 77MM (+14MM)

FITMENTS – GSX-R1000 (2001-2008)

• 63MM (+4MM)
• 65MM (+6MM)
• 67MM (+8MM)

FITMENTS – GSX-R1000 (2017+)

• 59.1MM (+4MM)
• 61.1MM (+6MM)
• 63.1MM (+8MM)
• 65.1MM (+10MM)

OEM Stock Stroke

• Hayabusa G1 (1999-2007) 63MM
• Hayabusa G2 (2008-2020) 65MM
• Hayabusa G3 (2022+) 65MM
• GSX-R1000 (2001-2008) 59MM
• GSX-R1000 (2009-2016) 57.3MM
• GSX-R1000 (2017+) 55.1MM

LEAD TIMES VARY DEPENDING ON MODEL & SIZE!
