Holley EFI

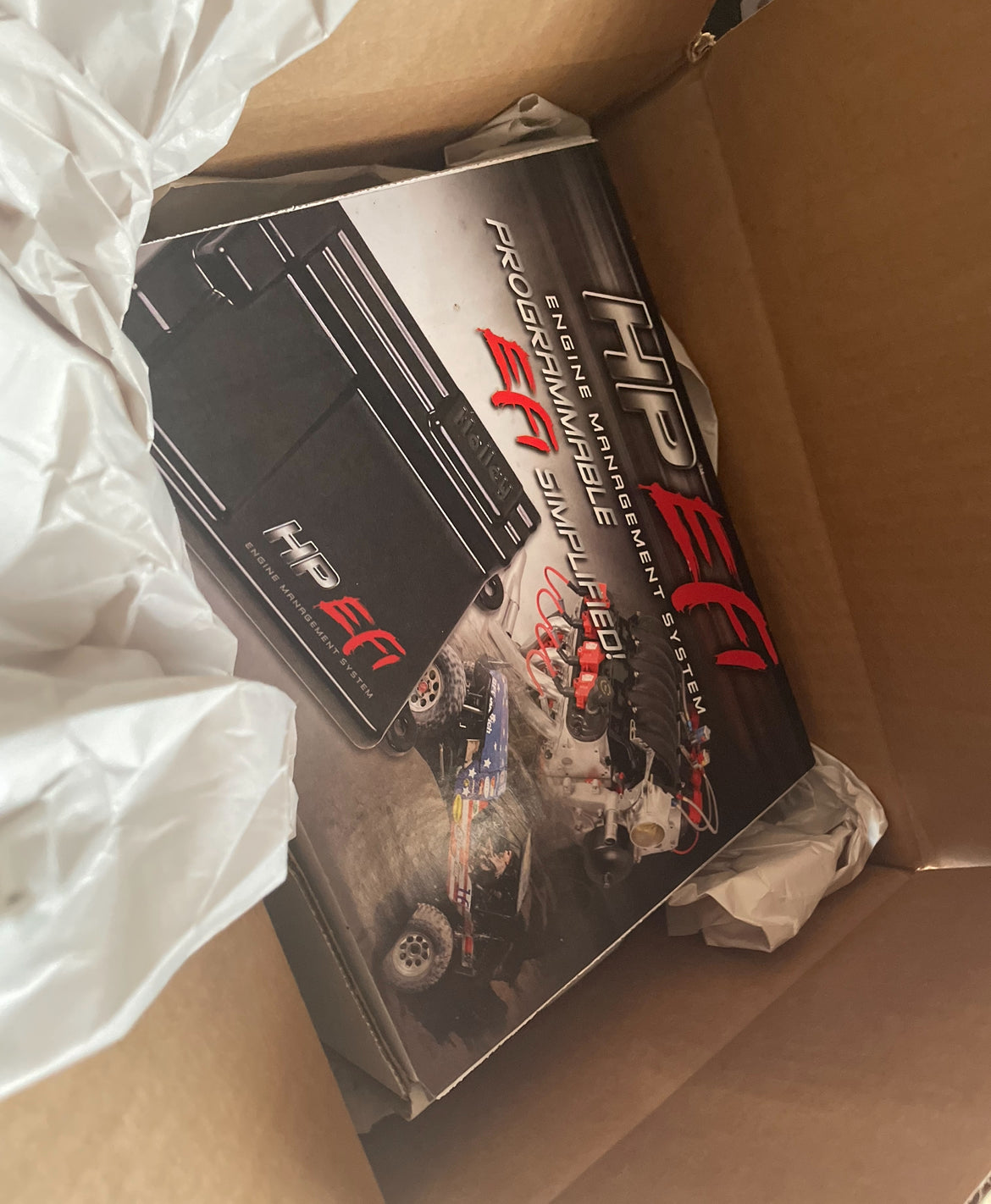

HOLLEY HP ECU

HOLLEY HP ECU

Regular price $1,740.00 USD
Regular price Sale price $1,740.00 USD
Sale Sold out
The HP allows you to accurately control the fuel and ignition of your engine along with additional controls for nitrous, boost or water meth.
  • Data Logger, scalable axes, smoothing, multiple graph view ability, pe-defined notes fields and more
  • Strip Chart Real-Time Data Viewer
  • Integrated Boost Control - Boost vs Time, Boost vs Gear (Time or RPM), Boost vs RPM, Boost vs Speed, Launch control, Boost launch builder, Over-boost safeties, Boost scramble
  • Traction Control - Power reduction via timing, nitrous percentage or boost (Requires Davis Technologies Holley Module)
  • Option for VE based fueling strategy
  • Fuel Map and Learn Function Smoothing
  • Configurable User Password Protection
  • Fully Configurable lap top Gauge Panel
  • Eight sequentially driven 8:2 peak and hold injector drivers, capable of driving up to 16 low or high impedance injectors as a standard feature. Multiple staged injector strategies
  • Eight channel Distributorless Ignition (DIS) outputs capable of directly driving “Smart” ignition coils or Holley DIS coils. Will drive 2 wire coils with the addition of PN 554-112 high current coil driver module
  • Integrated single channel wide band oxygen sensor control. Works with NTK or Bosch sensors
  • Internal data-logging standard with a huge 2GB of memory
  • 4 Stage progressive nitrous control
  • Turbo boost control
  • Self-tuning fuel table strategy greatly simplifies tuning process
  • Individual cylinder fuel and spark control allows you to unlock your engine’s potential
  • Works with 4, 6, 8 cylinder engines
  • Unique lb/hr based fueling strategy greatly simplifies and commonizes tuning
  • Advanced idle, closed loop, and enrichment strategies allow for very stable operation
  • ECU is fully potted and can be mounted in the engine compartment or interior
  • Sealed automotive and marine grade connectors
  • Allows for use of common OEM sensors as well as customer sensor calibration input
  • 1-5 Bar MAP sensor capability
  • Two channel knock control sensor Inputs for both one or two wire knock sensors
  • Dedicated fuel and oil pressure inputs
  • Controls both stepper and PWM Idle Air Control (IAC) motors
  • Speed density, Alpha-N, or combination fueling strategies
  • 4 Programmable high or low Pulse Width Modulated (PWM) outputs and 4 fully configurable inputs can be configured for use
  • 4 Stage nitrous oxide control
  • Fully featured nitrous control eliminates the need for a separate nitrous controller device
  • Can be configured “Wet” or “Dry” with closed loop feedback
  • Progressive control based on time, RPM, or boost; requires part # 554-111
  • Lean or rich safety cutoff
  • Full timing retard/control configurability per stage based on RPM or time
  • Integrated Water/Methanol injection control
