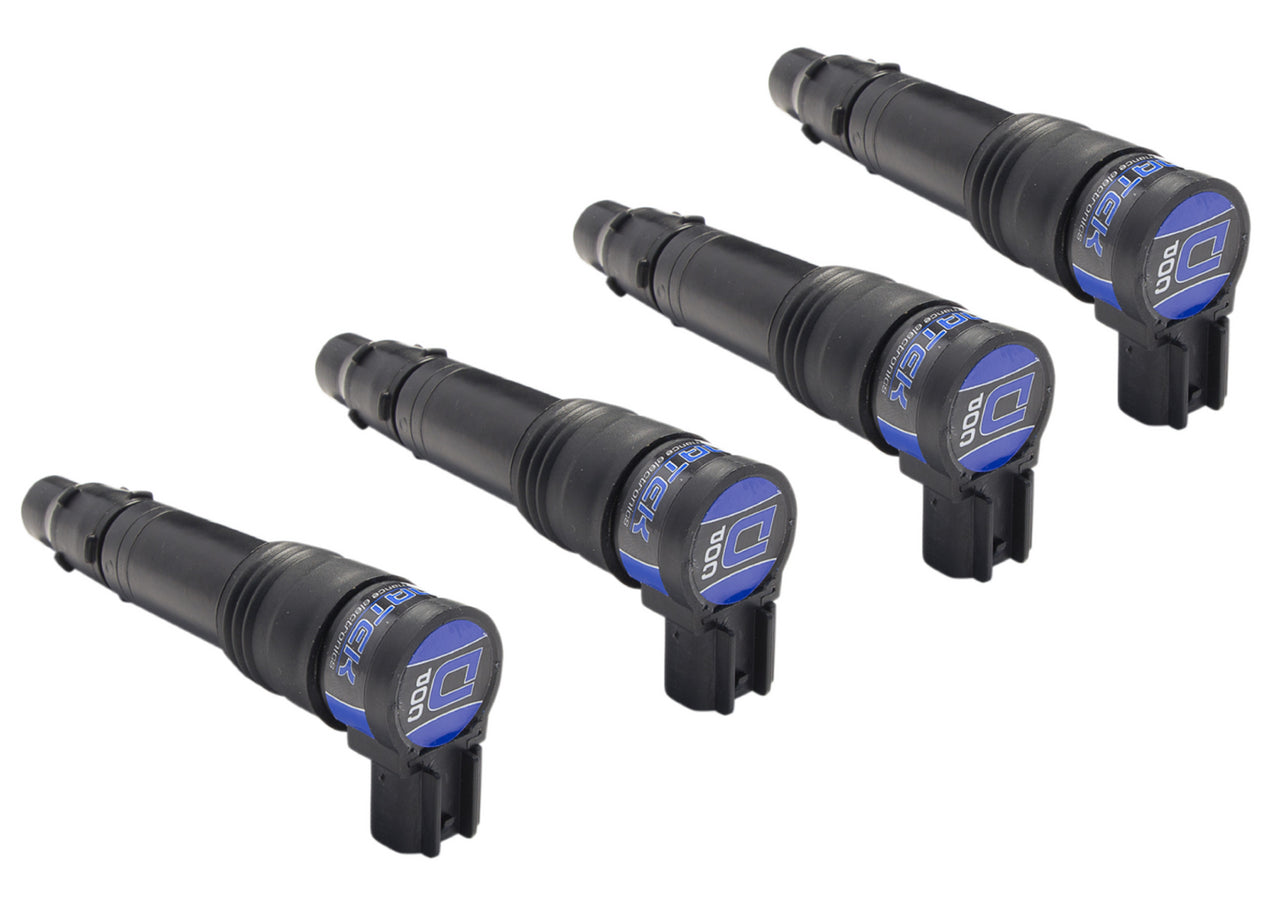

DYNATEK STICK COIL

Are you looking to increase horsepower with your High Compression, Nitrous or Turbo GSX-R1000?  Dyna Performance Electronics has what you need!

Dynatek would like to announce the release of our new High Performance Dynatek Coil-on-Plug (DCOP) replacement coils. Like all Dynatek High Performance Coils the DCOP offers increased spark energy as well as a factory replacement fit.

Specifications:

• Primary resistance: 0.85 ohms
• Primary inductance: 2.25 mH
• Secondary resistance: 4.95K ohms
• Secondary inductance: 12.1 H
• Test voltage: 13.8V
• Dwell time to achieve test current: 1.3ms=4.5A, 2.0ms=6.8A
• Secondary available voltage: 24.8Kv @ 4.5A, 32.8Kv @ 6.8A
• Secondary peak gap current: 64.4mA @ 4.5A, 94.8mA @ 6.8A
• Spark duration: 0.835ms @ 4.5A, 1.045ms @ 6.8A
